Worldwide Electric Corporation Worldwide HdRF325-5/1-DE-182/4TC Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio 182/4T Frame

Original price was: $530.00.Current price is: $93.99.

SKU: Worldwide Electric Corporation WBB1856717 Categories: Gearboxes & Speed Reducers, Worm Gear Reducers Tags: 15 ft, 350 rpm, 9.72 HP, 93, Cast Iron Right Ange Worm Gear Reducer, HdRF325-5/1-DE-182/4TC, Motors & Power Transmission, Worldwide Electric Corporation

Shop with Confidence
Effortless Shopping, Quality Products
Shop with confidence, enjoy free returns.
Your satisfaction is 100% guaranteed.

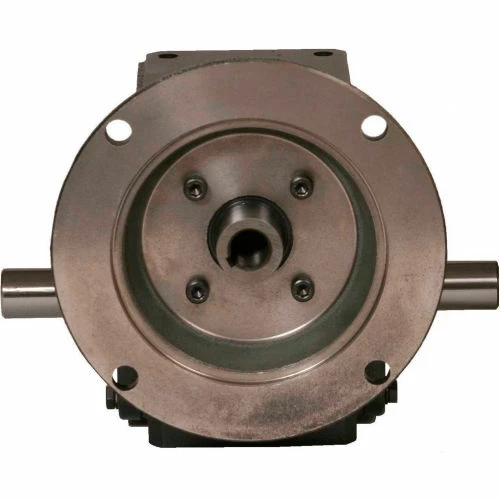

Worldwide HdRF325-5/1-DE-182/4TC Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio 182/4T Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 – 3.25 inches in ratio’s from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:

Tapered roller bearings on the input and output shafts
Embedded double-lip oil seals
Anti-rust primer applied inside and outside of the gearbox
Air dry special black paint

Output Shaft Thrust Load	1200 lbs
Gear Ratio	5:1
Max Torque	1724 lb-in
Overhung Load	1200 lbs
WCD Center	3.25 in
Efficiency	93
Max Input Horsepower	9.72 HP
Output Speed	350 rpm
Description	Cast Iron Right Ange Worm Gear Reducer
Manufacturers Part Number	HdRF325-5/1-DE-182/4TC
Backlash Angular Minutes	15 ft
Brand	Worldwide Electric Corporation
NEMA Frame	182/4TC
