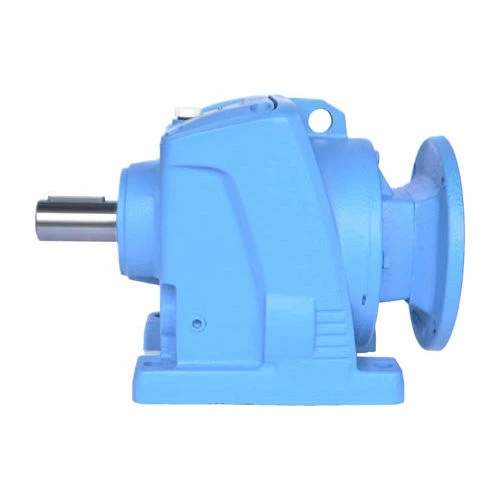

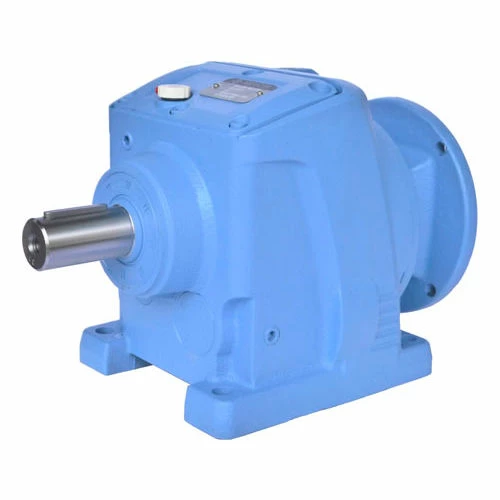

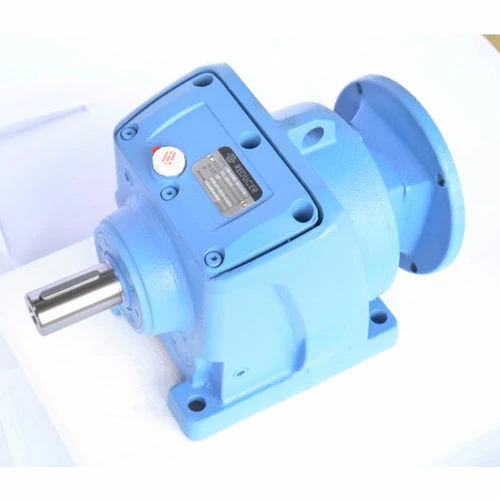

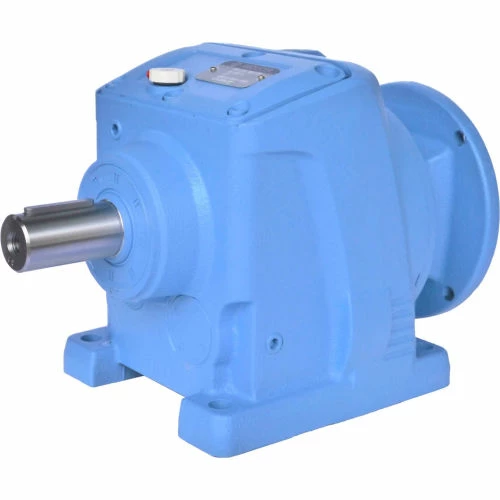

Worldwide Electric Corporation Worldwide Electric WINL67-2/1-182/4TC, Helical Inline Speed Reducer, 182/4TC Input Flange, 2:1 Ratio
Original price was: $471.95.$98.99Current price is: $98.99.
- Shop with Confidence
- Effortless Shopping, Quality Products
- Shop with confidence, enjoy free returns.
- Your satisfaction is 100% guaranteed.
Cast-Iron, Helical Inline Speed Reducers are available in box sizes 37-147 to support 1/4 HP to 100 HP NEMA frame motors in speed ratio’s from 2:1 to 120:1. The units have NEMA motor quill style input flanges and solid output shafts, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
| Max Torque | 617 lb-in |
|---|---|
| Overhung Load | 43 lbs |
| Box Size | 67 |
| Gear Ratio | 2:1 |
| Max Input Horsepower | 9.43 HP |
| Gear Stages | 1 |
| Actual Gear Ratio | 1.86 |
| Manufacturers Part Number | WINL67-2/1-182/4TC |
| Output Speed | 941 rpm |
| Brand | Worldwide Electric Corporation |
| NEMA Frame | 182/4TC |
