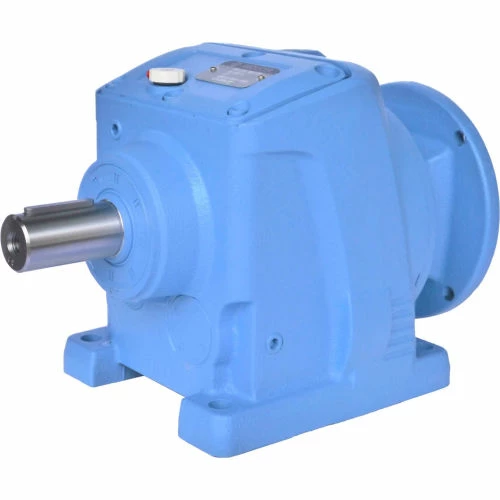

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio - Image 2

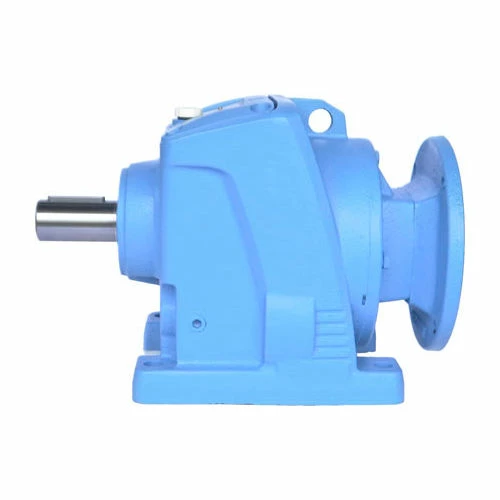

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio - Image 3

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio - Image 4

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio - Image 5

Worldwide Electric Corporation Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio

Original price was: $538.00.Current price is: $95.99.

SKU: Worldwide Electric Corporation WBB2052222 Categories: Gearboxes & Speed Reducers, Helical Inline Reducers Tags: 2, 361 rpm, 4.85, 9.59 HP, Motors & Power Transmission, WINL47-5/1-145TC, Worldwide Electric Corporation

Shop with Confidence
Effortless Shopping, Quality Products
Shop with confidence, enjoy free returns.
Your satisfaction is 100% guaranteed.

Worldwide Electric WINL47-5/1-145TC, Helical Inline Speed Reducer, 145TC Input Flange, 5:1 Ratio

Cast-Iron, Helical Inline Speed Reducers are available in box sizes 37-147 to support 1/4 HP to 100 HP NEMA frame motors in speed ratio’s from 2:1 to 120:1. The units have NEMA motor quill style input flanges and solid output shafts, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.

Max Torque	1565 lb-in
Overhung Load	440 lbs
Box Size	47
Gear Ratio	5:1
Max Input Horsepower	9.59 HP
Gear Stages	2
Actual Gear Ratio	4.85
Manufacturers Part Number	WINL47-5/1-145TC
Output Speed	361 rpm
Brand	Worldwide Electric Corporation
NEMA Frame	145TC
