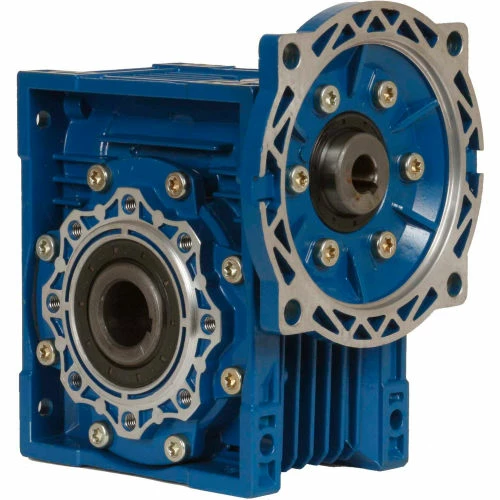

Worldwide Electric Corporation Worldwide Electric CALM90-20/1-145TC Aluminum Worm Gear Reducer, 90mm, 20:1, 145TC NEMA Frame

Original price was: $464.95.Current price is: $95.99.

SKU: Worldwide Electric Corporation WBB1742146 Categories: Gearboxes & Speed Reducers, Worm Gear Reducers Tags: 5.18 HP, 81, 88 rpm, CALM90-20/1-145TC, Hollow Bore, Motors & Power Transmission, Worldwide Electric Corporation

Shop with Confidence
Effortless Shopping, Quality Products
Shop with confidence, enjoy free returns.
Your satisfaction is 100% guaranteed.

Worldwide Electric CALM90-20/1-145TC Aluminum Worm Gear Reducer, 90mm, 20:1, 145TC NEMA Frame

Aluminum Worm Gear Reducers are available in box sizes 30 – 90mm in ratio’s from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.

Gear Ratio	20:1
Max Torque	3232 lb-in
Overhung Load	873 lbs
Box Size	90
Output Diameter	1.375 in
WCD Center	90 in
Efficiency	81
Max Input Horsepower	5.18 HP
Output Speed	88 rpm
Manufacturers Part Number	CALM90-20/1-145TC
Bore Type	Hollow Bore
Brand	Worldwide Electric Corporation
NEMA Frame	145TC
