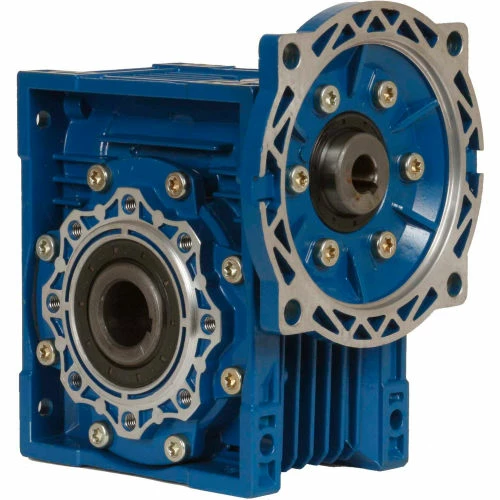

Worldwide Electric Corporation Worldwide Electric CALM90-15/1-182/4TC Aluminum Worm Gear Reducer, 90mm, 15:1, 182/4TC NEMA Frame
Original price was: $474.95.$94.99Current price is: $94.99.
- Shop with Confidence
- Effortless Shopping, Quality Products
- Shop with confidence, enjoy free returns.
- Your satisfaction is 100% guaranteed.
Aluminum Worm Gear Reducers are available in box sizes 30 – 90mm in ratio’s from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
| Gear Ratio | 15:1 |
|---|---|
| Max Torque | 3177 lb-in |
| Overhung Load | 794 lbs |
| Box Size | 90 |
| Output Diameter | 1.375 in |
| WCD Center | 90 in |
| Efficiency | 82 |
| Max Input Horsepower | 6.86 HP |
| Output Speed | 117 rpm |
| Manufacturers Part Number | CALM90-15/1-182/4TC |
| Bore Type | Hollow Bore |
| Brand | Worldwide Electric Corporation |
| NEMA Frame | 182/4TC |
